HOLLOW ROTATING TABLE

Features :

● With outstanding positioning accuracy and repeatability, the Hollow Rotating Table is available to use servo motor or stepping motor drive and exhibits exceptional dependability of performance.

● Direct Mounting of Workpiece.

● The rotating table allows for direct mounting of workpiece for added convenience in workpiece loading.

● Convenient Wiring.

● The rotating table is a hollow structure design, making it convenient for electric wiring or piping work.

● High Accuracy.

● Positioning accuracy is less than 1 min.

● Repeatability may reach ±5 sec.

● Stable Rotating Motion.

● The table rotation is stable and smooth as well as fast in positioning.

● Suitable for Various Motors.

● The rotating table can be driven by various brands of servo motors or stepping motors.

Model Identification

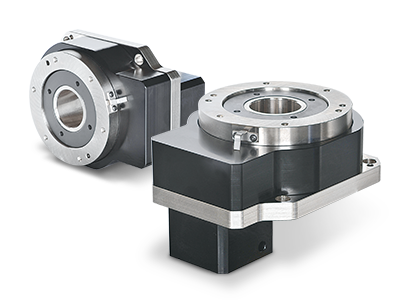

HT60 Application Examples

HT series PDF

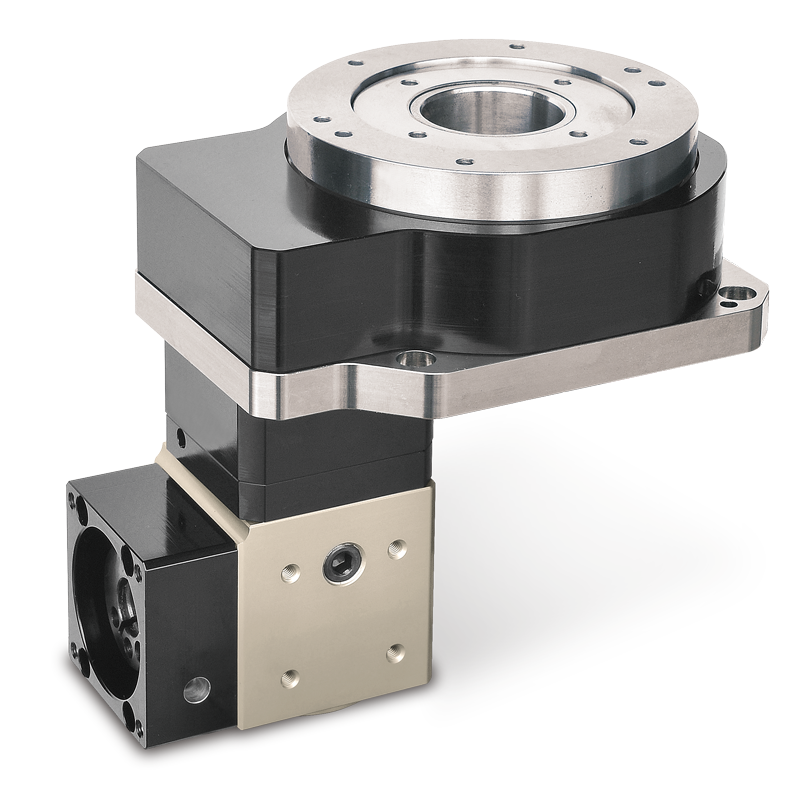

  • HOLLOW ROTATING TABLE_HT

    HT60 type Stepping Motor

    Frame No. Speed Ratio
    42 Type Stepping Motor Direct-drive reducer 1:5, 1:20
    Right angle reducer 1:10

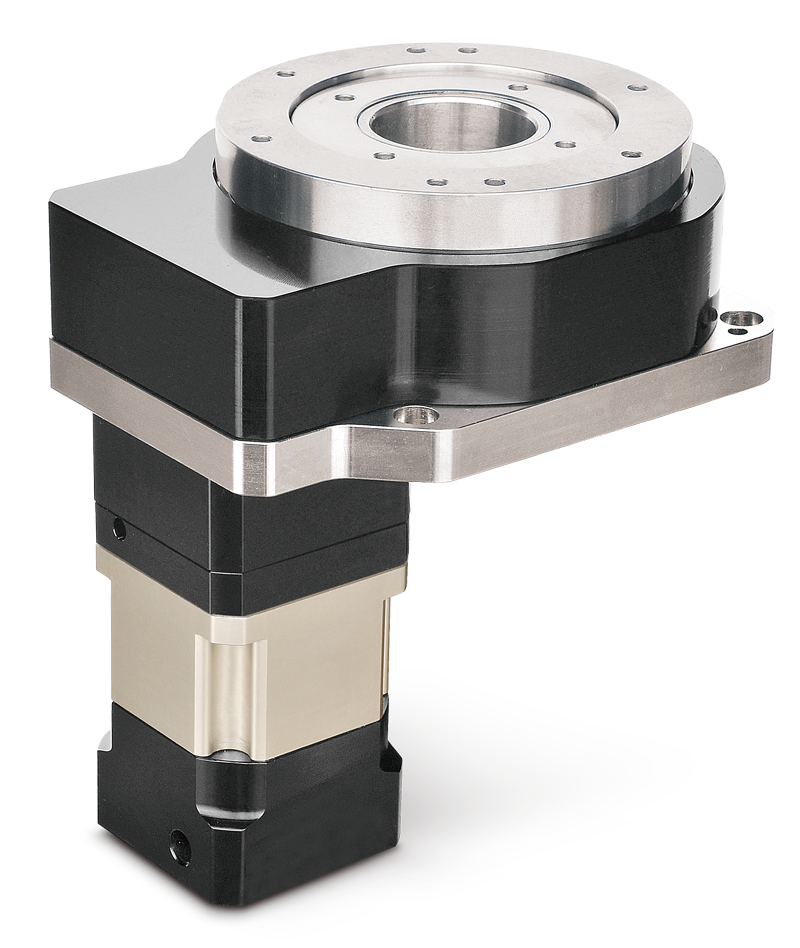

  • HOLLOW ROTATING TABLE_AC_servo_motor

    HT60 AC Servo Motor

    Frame No. Speed Ratio
    100W AC Servo Motor Right angle reducer 1:10
