RIGHT ANGLE REDUCER

Features :

● The right angle reducer is precision machined on a b-axis controlled machining center, which allows for one-piece machining in one setup to assure the best geometric accuracy.

● The transmission gears are precision ground, providing low rotating backlash and high accuracy

● Precise transmission, low noise, maximum stability and smoothness

● The reducer body is compactly constructed with small volume to save considerable installation space.

● Although the reducer is small in volume and light in weight, it is capable of providing high torque output and low backlash.

● When ordering, please advise the sizes of flange and shaft of your motor

Model Identification

AR42 Application Examples

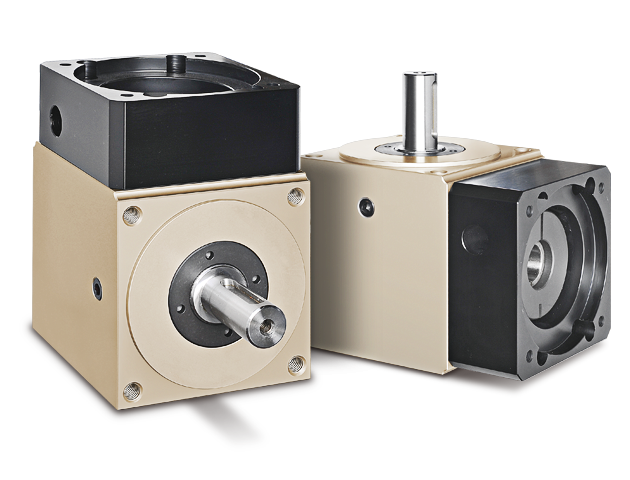

AR series PDF
  • RIGHT ANGLE REDUCER_AR

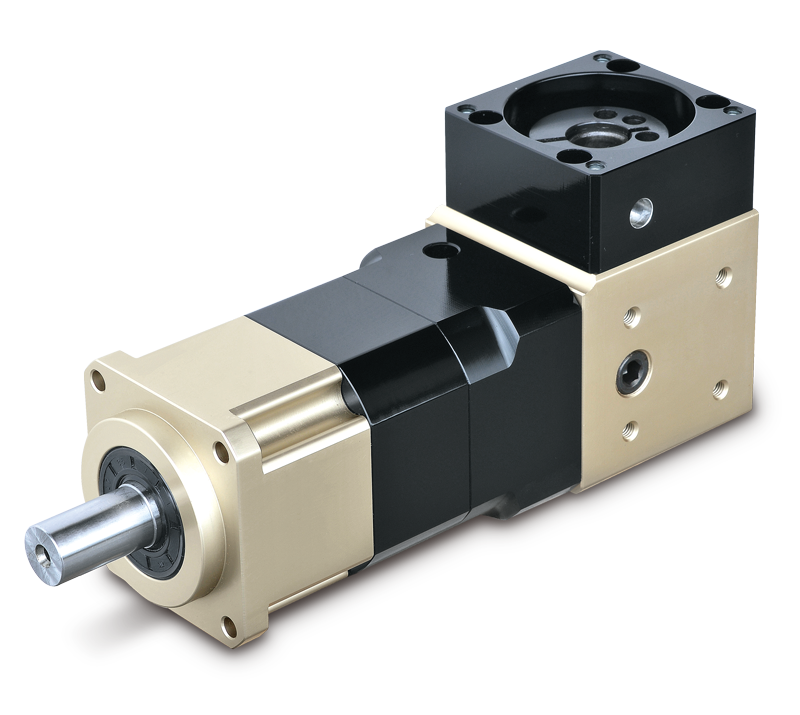

    AR42 I-type

    Frame No. Speed Ratio
    6, 10, 20, 30 40, 50, 60, 80, 100, 140, 180, 200
  • RIGHT ANGLE REDUCER_AR

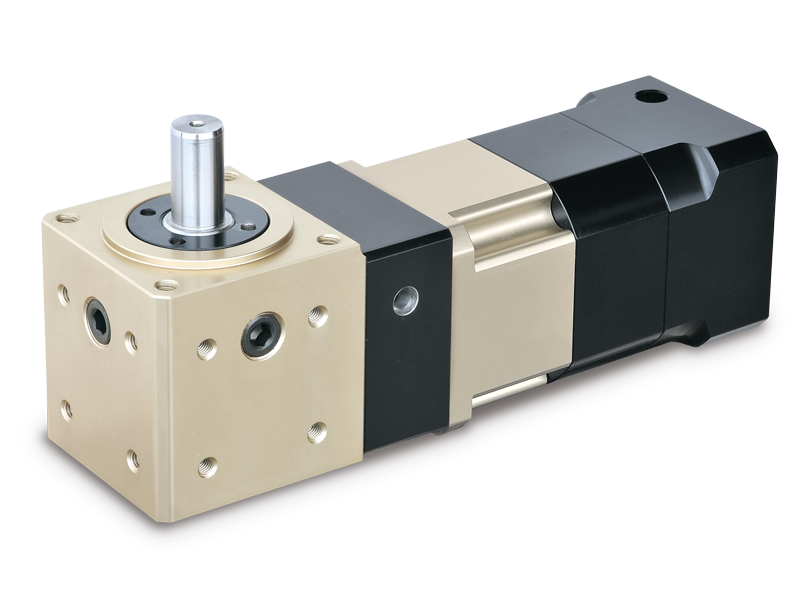

    AR42 S-type

    Frame No. Speed Ratio
    6, 10, 20, 30 40, 50, 60, 80, 100, 140, 180, 200
