訂購資料 Ordering Information
訂購時,請提供下列資料,以方便訂單作業。 When ordering, please provide following to facilitate order processing.

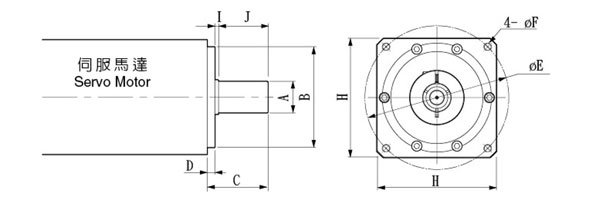

A
B
C
D
E
F
H
I
J

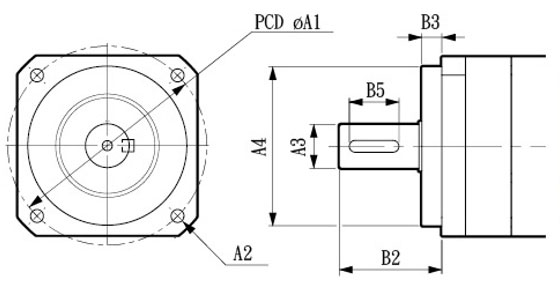

減速機出力法蘭 Output Flange of Reducer :
出力軸心
Output shaf
軸長 引導長度 L
Shaf leng & Guide leng
鍵槽
Key way
引導 øB
Guide øB
螺絲孔徑 T
Guide leng T
P.C.D.A
螺絲孔徑
Screw hole
A3
B2
B5
A4
B3
A1
A2
行星減速機訂購編號 Planetary Gearheads Order No.
-
-
-
-
減速機型
Reducer Type
型號
Model
速比
Speed Ratio
出力軸鍵
Output shaft keyway
背隙等級
Backlash class
馬達型號
Motor type
訂購注意事項 Notices for Ordering :
產品名稱、型號及所需馬力。
減速比或每分鐘轉速。
荷重能力及安裝聯結方式。
所需數量及安裝之機械名稱。
入力方式及入力轉速。
馬達廠牌、型號或法蘭及馬達心軸尺寸。
Product name, model and horsepower required.
Speed reduction ratio or speed ( rpm ) required.
Loading condition and connection method.
Quantity required and machine name.
Input method and speed.
Motor brand, model, sizes of flange and motor shat.
